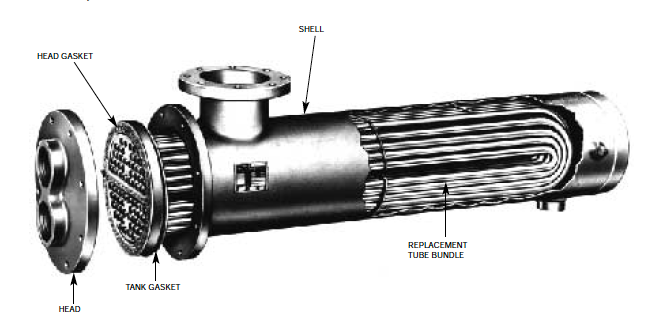

Heat Exchanger Tube Bundles & U-Tube Sets
We supply and export custom-engineered heat exchanger tube bundles and U-tube sets manufactured to international standards. Our designs cover carbon steel, stainless steel, copper-nickel alloys, and Monel materials, ensuring excellent thermal performance, corrosion resistance, and long service life for refineries, petrochemicals, marine, and industrial applications.
📌 Product Specifications
1. Copper-Nickel Alloy Tube Bundle
-
Tube Material: Cu-Ni Alloy 70/30 (ASTM B111 C71500)
-
Tube OD: 3/4 in
-
Tube Thickness: 0.065 in (16 BWG)
-
Tube Length: 20 ft (6096 mm)
-
Stationary Sheet: Carbon Steel (ASTM A350 LF1)
-
Coating: Monel UNS N04400 (ASTM B127), 10 mm thick
-
Stationary Sheet Dia: 958 mm, Thickness: 61 mm
-
Floating Sheet: Carbon Steel SA 350 LF1, Monel coated (10 mm)
-
Floating Sheet Dia: 775 mm, Thickness: 61 mm
2. Cu-Ni Alloy Tube Bundle (1 in OD)
-
Tube Material: Cu-Ni Alloy 70/30 (ASTM B111 C71500)
-
Tube OD: 1 in, Thickness: 14 BWG
-
Tube Length: 240 in (6096 mm)
-
Stationary Sheet: Carbon Steel (ASTM A265 / A283 Gr C)
-
Coating: Monel UNS N04400 (ASTM B127), 9 mm thick
-
Stationary Sheet Dia: 982 mm, Thickness: 63+9 mm
-
Floating Sheet: Carbon Steel, Monel coated (ASTM B127)
3. Carbon Steel Tube Bundle
-
Tube Material: SA-179 Carbon Steel
-
Tube OD: 3/4 in, Thickness: 14 BWG (0.083 in)
-
Tube Length: 192 in (4877 mm)
-
Stationary Sheet: ASTM A516 Gr 70
-
Dia: 1130 mm, Thickness: 67 mm
-
Baffles: Carbon Steel (ASTM A516 Gr 70)
-
No. of Tubes: 508
4. Stainless Steel Tube Bundle (316)
-
Tube Material: ASTM A213 TP316
-
Tube OD: 1 in, Thickness: 0.065 in (16 BWG)
-
Tube Length: 16 ft (4877 mm)
-
Stationary & Floating Sheets: ASTM A240 TP316
-
Stationary Dia: 48-1/8 in, Thickness: 3-5/8 in
-
Floating Dia: 38-5/8 in, Thickness: 3-5/8 in
-
Baffles: Stainless Steel (ASTM A240 TP316)
-
No. of Tubes: 584
5. Stainless Steel Super Duplex Tube Bundle
-
Tube Material: ASTM A789 UNS S32707
-
Tube OD: 1 in, Thickness: 2.032 mm (14 SWG)
-
Tube Length: 20 ft (6100 mm)
-
Stationary Sheet: ASTM A240 UNS S32750
-
Dia: 670 mm, Thickness: 48 mm
-
Floating Sheet: ASTM A240 UNS S32750
-
Dia: 533 mm, Thickness: 48 mm
-
Baffles: Stainless Steel (ASTM A240 TP316)
-
No. of Tubes: 150
6. Carbon Steel U-Tube Set
-
Tube Material: ASTM A214
-
Tube OD: 1 in, Wall Thickness: 0.109 in (min)
-
No. of Tubes: 191
-
Drawing Ref: 669-30-ME 830 Rev.1
-
Equipment Ref: E-308 PDAY-1
7. Monel Tube Bundle
-
Tube Material: ASTM B163 Monel (UNS N04400)
-
Tube OD: 1 in, Thickness: 14 BWG
-
Tube Length: 144 in (3658 mm)
-
Stationary Sheet: ASTM A516 Gr 70 with Monel Coating (ASTM B127)
-
Sheet Dia: 918 mm, Thickness: 72+10 mm
-
Baffles: Carbon Steel (ASTM A36)
-
No. of Tubes: 212
8. Copper-Nickel Alloy Tube Bundle (70/30 Full Alloy)
-
Tube Material: ASTM B359 C71500 (70/30 Cu-Ni)
-
Tube OD: 1 in, Thickness: 0.065 in (16 BWG)
-
Tube Length: 20 ft
-
Stationary Sheet: ASTM B171 C71500
-
Dia: 1293.8 mm, Thickness: 82.55 mm
-
Floating Sheet: ASTM B171 C71500
-
Dia: 1287.4 mm, Thickness: 82.55 mm
-
Baffles: Cu-Ni Alloy 70/30 (ASTM B171)
-
No. of Tubes: 1002
✅ Key Features
-
Manufactured per ASTM, ASME & TEMA Standards
-
Available in CS, SS, Cu-Ni, Duplex, Monel & Alloy materials
-
Designed for high thermal efficiency & corrosion resistance
-
Suitable for Oil & Gas, Petrochemical, Power, Marine & Process Industries
